Rohner offers a variety of control panels for operating and monitoring our complete line of paint spray booths, ovens and finishing systems - with many control options to fit your specific need. Intuitive touchscreen pages allow an operator easy access to all your process parameters. Monitor and adjust the process quickly, and then you can save to the internal recipe manager for the future use.

STANDARD FEATURES PROVIDED IN ROHNERS BOOTH CONTROLS INCLUDE:

  • Panels are ETL Listed to UL508 standard
  • 5.7" QVGA color touch screen
  • NEMA 12 main PLC enclosure
  • Industrial start/mode & stop buttons
  • F.L.O. - "Filter Life Optimizer"
  • Automatic booth pressure balance
  • System status/diagnostics troubleshooter
  • Multi-stage ramp for flash, bake and cool-down, with recipe memory
  • All processes and components are continuously monitored, reducing downtime and maintenance costs

Rohner Paint Spray Booths are designed to meet or exceed NFPA33 and IFC Chapter 24 requirements. View Requirements

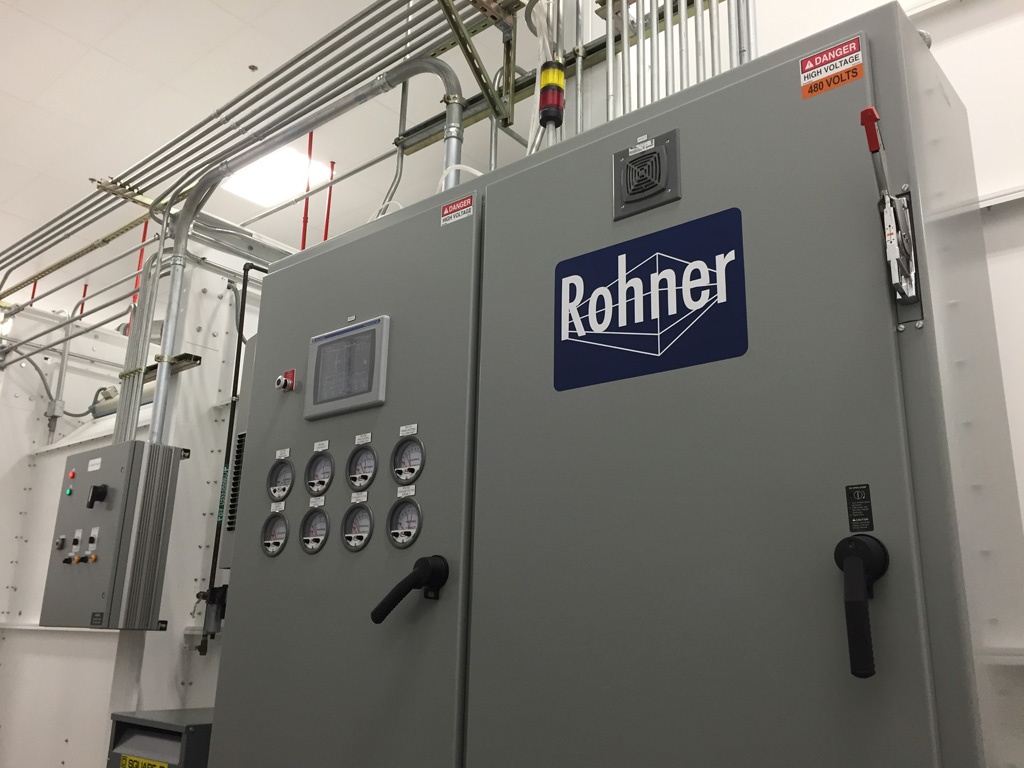

Crossdraft-Spray-Booth-Military-Facility-Controls-2
Rohner Booth Controls
Rohner Booth Controls
Rohner Booth Controls
Rohner Booth Controls
Rohner Booth Controls
Rohner Booth Controls
Rohner Booth Controls
Rohner Booth Controls
Rohner Booth Controls
Rohner Booth Controls
Rohner Booth Controls

SPECIFICATIONS FOR BOOTH CONTROLS

Std. Opt Std. Opt
Heated M.A.U. capable Standby energy saving mode
Bake Cycle capable Auto booth pressure control
Multi stage flash, bake & cool down programmable Android & IOS remote tablet/phone monitoring
Recipe storage & recall Cellular remote diagnostics
Exhaust fan VFD Multi-unit Master & Slave configurable
Exhaust fans 2-4 VFDs Remote Audio/Visual light speaker/light tree
Filter Life Monitor Auto Tuning Temperature Loop Controller
Auto Diagnostic Status Auto Tuning, Humidity or V.O.C. Loop Controller

APPLICATIONS FOR BOOTH CONTROLS

Standard

STANDARD

Solid state reliable controls with safety interlocks

PLC with HMI

PLC WITH HMI

Intelligent programable logic controller with trouble shooting diagnostics.

Allen Bradley

ALLEN BRADLEY

Full customizable PLC controls for the most demanding OEM and Military requirements

SIZING FOR BOOTH CONTROLS

MODEL DESCRIPTION EXHAUST MOTOR QTY HP VOLTAGE PHASE
CP-SB-(qty.)**-***-* Spray Booth Control Package (2-4 VFDs) HP 208-230 or 460 1 or 3
CP-PO-**-***-* Process Oven Control Package HP 208-230 or 460 1 or 3
GET A QUOTE

Perfect for managers and service technicians, just use the optional wireless features to remotely monitor and control your process. Application runs on all Android & iOS devices.

For more information on the standard features and available options of our Operator Process Control Panels, please contact Rohner and someone on our staff will help.
