Rohner In-Line Process Recovery Booths are designed with optimal airflow for powder containment and application efficiency, and are the perfect solution for bringing the advantages of spray-to-waste/reclaim cartridge collector efficiency to your powder coating process. Our standard powder coating booths control air uniformly through all the booth openings, exhausting air and collecting excess powder through the two-stage filters of the collector modules. Rohner In-Line Process Powder Recovery Booths can be designed for automatic or manual gun usage, and they provide a superior application process as the conveyor slot allows for your racked parts to move through the spray area via conveyor rail.

STANDARD FEATURES PROVIDED IN ROHNER IN-LINE PROCESS RECOVERY BOOTHS INCLUDE:

  • Premium 18 gauge G90 galvanized steel, recommended powder coated white
  • No nut or bolt heads for a smooth interior surface for easy cleaning
  • Expandable sections for future growth of spray area
  • Quiet blower with TEFC direct drive motor run by VFD
  • Automatic back pulse cleaning
  • High-efficiency, T-8 fluorescent Class I Div. II lighting
  • Horizontal airflow with adjustable velocity
in-line-process-recovery-powder-booth

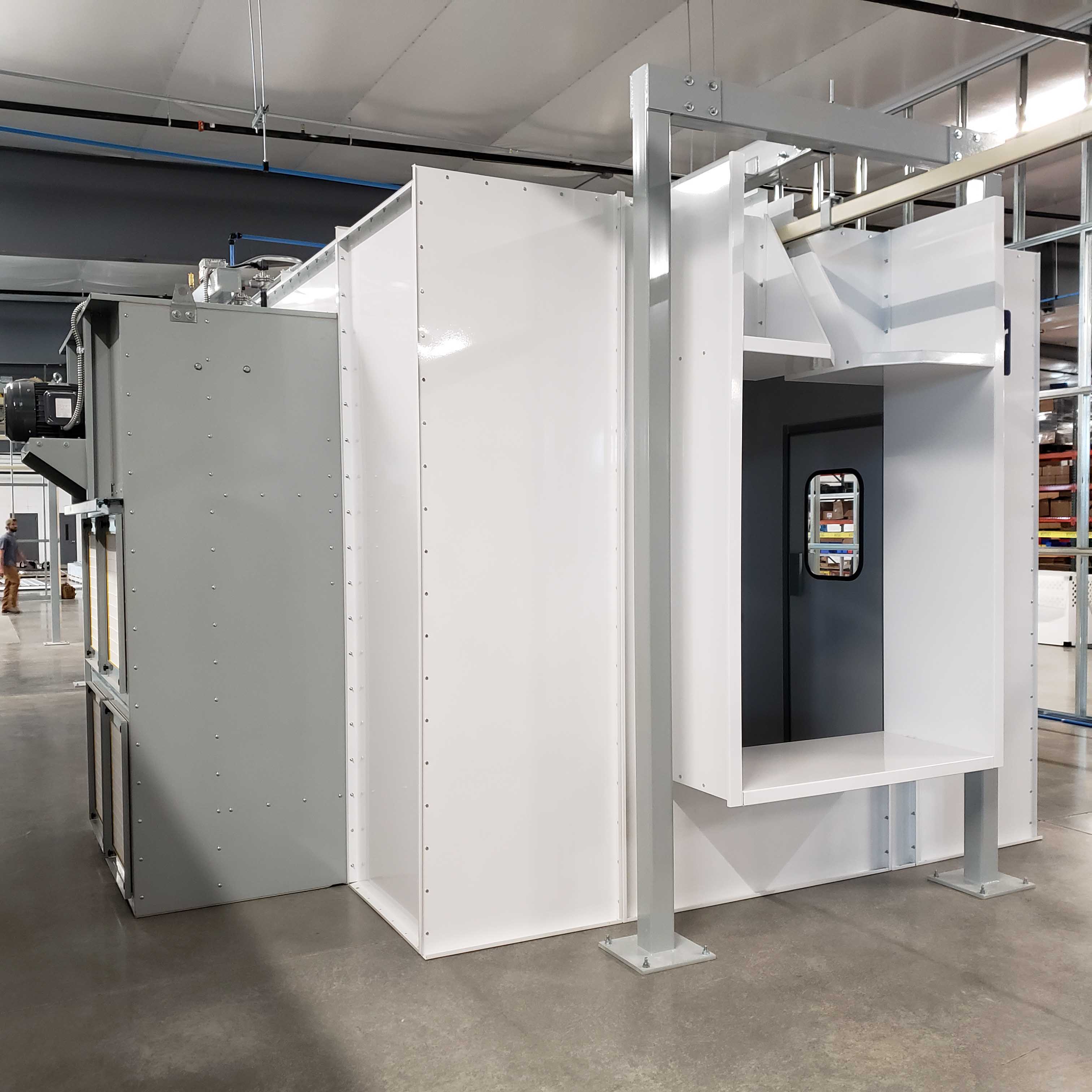

Rohner - Inline Powder Booth
in-line-process-recovery-powder-booth
in-line-process-recovery-powder-booth
in-line-process-recovery-powder-booth
in-line-process-recovery-powder-booth
in-line-process-recovery-powder-booth
in-line-process-recovery-powder-booth
in-line-process-recovery-powder-booth
in-line-process-recovery-powder-booth
in-line-process-recovery-powder-booth
in-line-process-recovery-powder-booth
in-line-process-recovery-powder-booth

INDUSTRIES FOR IN-LINE PROCESS RECOVERY BOOTH

SPECIFICATIONS FOR IN-LINE PROCESS RECOVERY BOOTHS

Std. Opt Std. Opt
18 Gauge galvanized construction Elevated structural platform with adjustable canopy supports and part opening vestibules
HEPA final filters Operator touch-up window with Dutch style door
Class I Div. II sealed inside access light fixtures with color correct lamps Operator platforms, safety rail, and steps
RM Series Reclaim Module with 80/20 nano-fiber cartridge filter, MERV 14 redundant final filters and 5" static pressure rating UL 508 listed NEMA 12 panel: VFD variable volume, automatic back pulse timer board, lighting contactor, reclaim hopper, and transfer pump solenoid control.
Powder coated white finish or stainless steel construction Roll on/off V-groove caster kit
Automatic gun slots and conveyor shroud Additional rollaway quick color change filter housing

APPLICATIONS FOR IN-LINE PROCESS RECOVERY BOOTH

Fitness Equipment

Fitness Equipment

In-Line Process Recovery Booths meet the high production requirements of fitness equipment manufactures allowing for multiple color recycling.

Appliance Manufactures

Appliance Manufactures

Appliance Manufactures use In-Line Process Recovery Booths to apply durable powder coating finishes.

Wheels

Wheels

Wheel manufactures benefit from the low labor operating cost provided by In-Line Process Recovery Booths.

SIZING FOR IN-LINE PROCESS RECOVERY BOOTH

MODEL W H D W H D A B Operator Openings Light Fixtures CFM
RM4000-5-6-16 5'-0" 6'-0" 20'-0" 11'-9" 8'-4" 24'-0" 2' 3' 2 4 4000
RM5000-5-7-16 5'-0" 7'-0" 20'-0" 11'-9" 9'-4" 24'-0" 2' 4' 2 4 5000
RM6000-5-8-16 5'-0" 8'-0" 20'-0" 11'-9" 10'-4" 24'-0" 3' 5' 2 4 6000
RM7000-6-7-18 6'-0" 7'-0" 22'-0" 12'-9" 9'-4" 26'-0" 4' 4' 2 4 7000
RM8000-6-8-18 6'-0" 8'-0" 22'-0" 12'-9" 10'-4" 26'-0" 4' 5' 2 4 8000
RM9000-6-9-18 6'-0" 9'-0" 22'-0" 12'-9" 11'-4" 26'-0" 4' 6' 2 4 9000
RM9000-7-8-20 7'-0" 8'-0" 24'-0" 13'-9" 10'-4" 28'-0" 5' 5' 2 4 9000
RM10000-7-9-20 7'-0" 9'-0" 24'-0" 13'-9" 11'-4" 28'-0" 5' 6' 2 4 10000
RM12000-7-10-20 7'-0" 10'-0" 24'-0" 13'-9" 12'-4" 28'-0" 5' 7' 2 4 12000
GET A QUOTE

Our In-Line Process Recovery Booths are pre-wired, and NEMA 12 dust-tight industrial control panel reduces install cost and includes panel-mounted variable volume adjustment for optimizing airflow and transfer efficiency. Automatic back pulse cleaning of our In-Line Process Recovery Booths ensures consistent airflow and extends filter life, and our automatic clogged-filter shutdown ensures a safe environment. Rohner In-Line Process Recovery Booths are designed to meet or exceed NFPA33 and IFC Chapter 24 requirements. Consult your local authority having jurisdiction for additional requirements before purchasing.

For more information on the standard features and available options of our In-Line Process Recovery Boots, please download the Process Powder Coating Booths Brochure or contact Rohner and someone on our staff will help.
