Powder Coating System Bundle

Rohner provides a powder coating system bundle package including part preparation, powder coating booths, and batch ovens designed to increase production and powder coating efficiency for your components and parts.

Products included in our Powder Coating System Bundle:

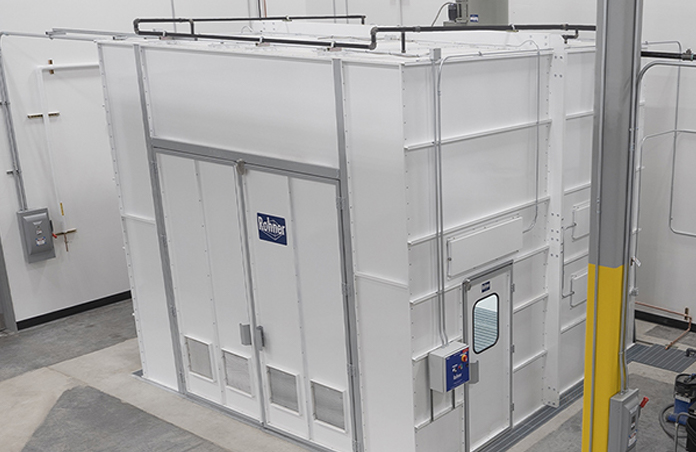

Part Preparation: Our part preparation solutions provide both manual batch wash stations and in-line process multi-stage automatic parts washers for large components and parts.
Large Batch Powder Booths: Our large batch powder booths are 20' W x 16' H x 60' L to accommodate large equipment and parts with high production volumes.
Large Batch Ovens: Our modular heat solutions for preheating, baking, curing, and drying are 16' W x 14' H x 60' L for large production runs to maximize production.

Industries that use our powder coating bundles include:

Industrial Manufacturing
Data Centers
Heavy Equipment and Fleet
Aerospace and Military
Power Generation
Wind Turbines
Agricultural
Pre-fabricated building manufacturing

If you have large volume production needs, our turnkey powder coating system bundle can get you up and running quickly.

Learn more:

The Best Industrial Finishing Systems for High-Volume Manufacturing

Large Equipment Finishing Systems for Oversized Parts and Heavy-Duty Manufacturing

How to Automate Your Paint Finishing Process with Integrated Systems

SPECIFICATIONS FOR BATCH NON-RECOVERY BOOTHS

	Std.	Opt		Std.	Opt
18 Gauge galvanized construction	•		Filtered product doors		•
Powder coated white finish		•	HEPA final filters		•
Class I Div. II sealed inside access light fixtures with color correct lamps	•		UL 508 listed NEMA 12 panel: VFD variable volume, automatic back pulse timer board & lighting contactor	•
Collector Module with cartridge filters, final filters, and back pulse solenoids	•		Fluidized recovery hopper, powder dispensing box chute and transfer pump port		•
High static Collector Module		•	3' x 7' Access door with 18" x 24" tempered glass window		•

APPLICATIONS FOR BATCH CARTRIDGE RECOVERY BOOTH

Electrical Enclosures

Cartridge recovery booths are often used by electrical control panel enclosure manufactures to recycle a common powder color, reducing waste.

Aftermarket automotive accessories

Aftermarket automotive manufacturers benefit from the high capacity and reclaim performance of cartridge collector powder booths.

Powder Coat Job Shops

Powder coat job shops know quality, Rohner CM collector modules are industry know for high quality, long filter life and low noise operation.

MODEL	W	H	D	W	H	D	Light Fixtures	Collector Module/QTY	CFM. (Min.-Max)
BPB-6-8-6	6'-0"	8'-0"	6'-0"	6'-4"	8'-2"	9'-0"	1	(1) CM6000	4,000-6,000
BPB-6-10-6	6'-0"	10'-0"	6'-0"	6'-4"	10'-2"	9'-0"	1	(1) CM6000	4,000-6,000
BPB-8-8-6	8'-0"	8'-0"	6'-0"	8'-4"	8'-2"	9'-0"	1	(1) CM6000	4,000-6,000
BPB-8-10-6	8'-0"	10'-0"	6'-0"	8'-4"	10'-2"	9'-0"	1	(1) CM6000**	4,000-6,000
BPB-10-8-6	10'-0"	8'-0"	6'-0"	10'-4"	10'-2"	9'-0"	2	(1) CM6000**	4,000-6,000
BPB-10-10-6	10'-0"	10'-0"	6'-0"	10'-4"	10'-2"	9'-0"	2	(1) CM10000	7,000-10,000
BPB-12-8-6	12'-0"	8'-0"	6'-0"	12'-4"	8'-2"	9'-0"	2	(1) CM10000	7,000-10,000
BPB-12-10-6	12'-0"	10'-0"	6'-0"	12'-4"	10'-2"	9'-0"	2	(2) CM6000	8,000-12,000

Pre-wired , NEMA 12 dust-tight industrial control panel reduces install cost and includes panel-mounted variable volume adjustment for optimizing airflow and transfer efficiency. Automatic back pulse cleaning of our powder spray booths ensures consistent airflow and extends filter life, and our automatic clogged-filter shutdown ensures a safe environment. Rohner Batch Cartridge Recovery Booths are designed to meet or exceed NFPA33 and IFC Chapter 24 requirements. Consult your local authority having jurisdiction for additional requirements before purchasing.

For more information on the standard features and available options of ourBatch Cartridge Recovery Booths, please contact Rohner and someone on our staff will help.
