Automated Powder Coating System

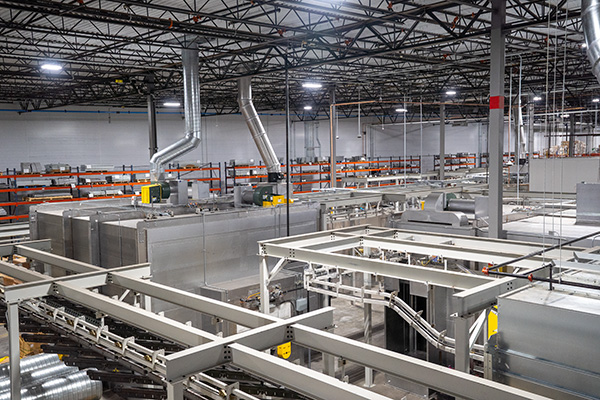

This automated powder coating system was built for one of our customers to finish panelized assemblies in a large facility.

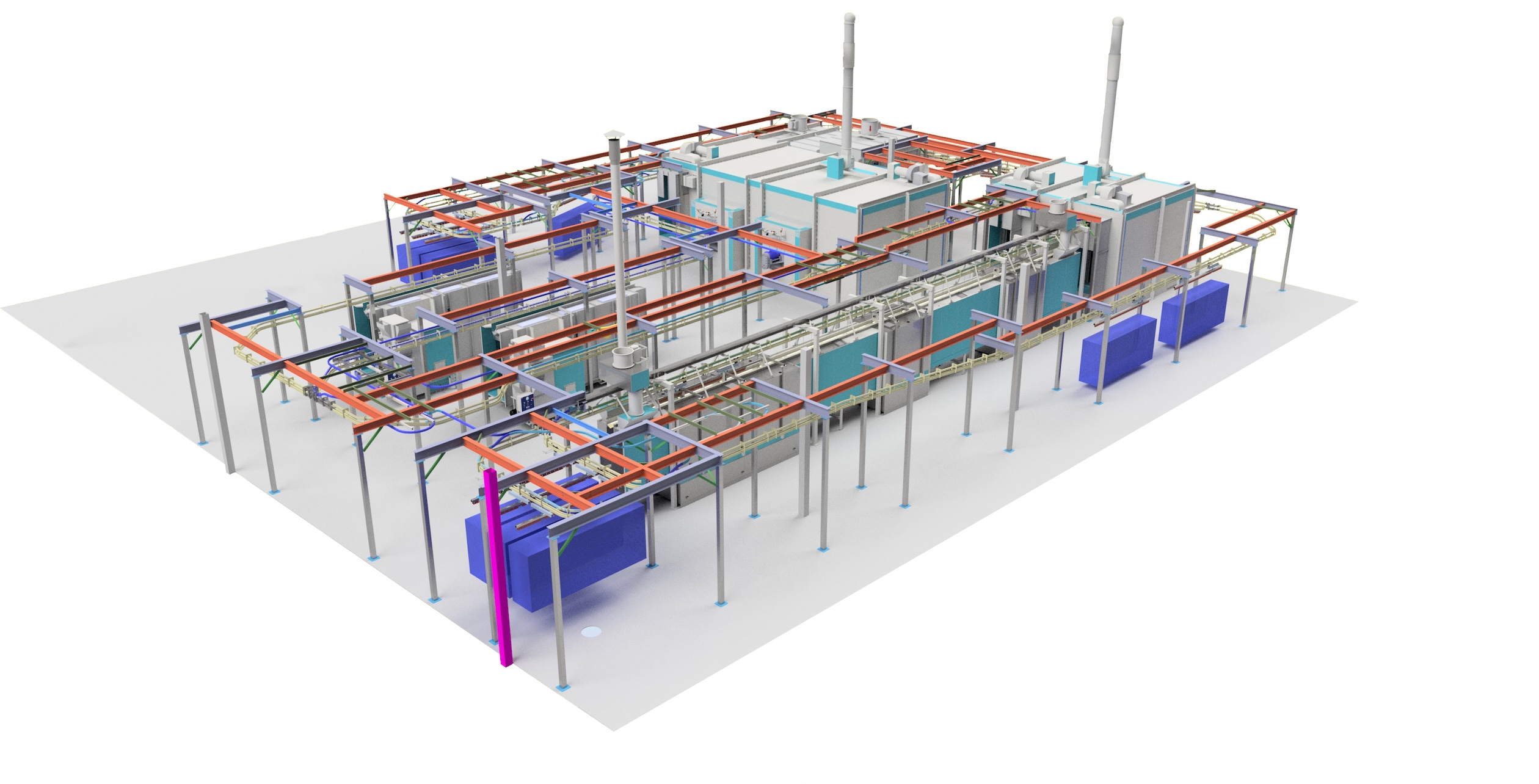

Rohner designed and built an automated system with a 3-stage washer, drying oven, dual-process powder booth with a Wagner powder coat reciprocator, curing oven, cool down funnel, power and free conveyor system, reverse osmosis water generation, and waste treatment system.

Features:

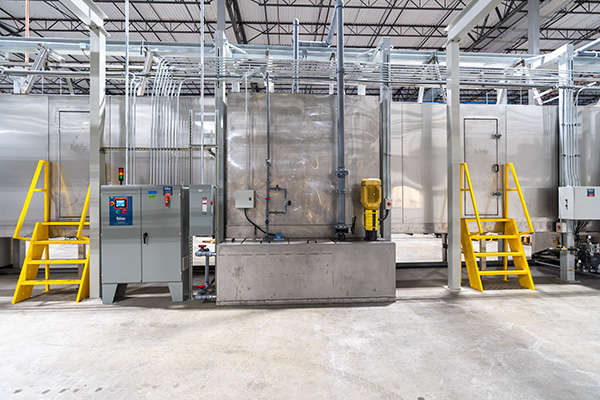

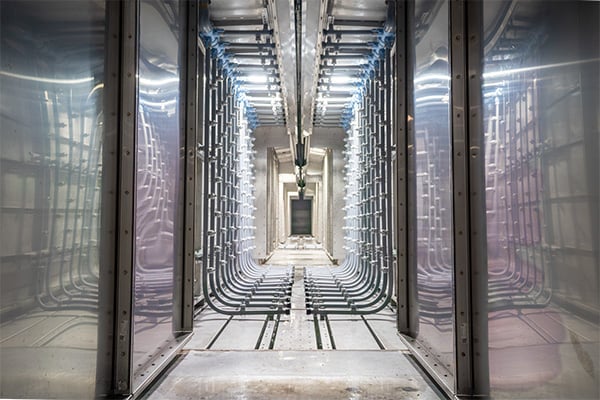

3-stage washer
Dying oven

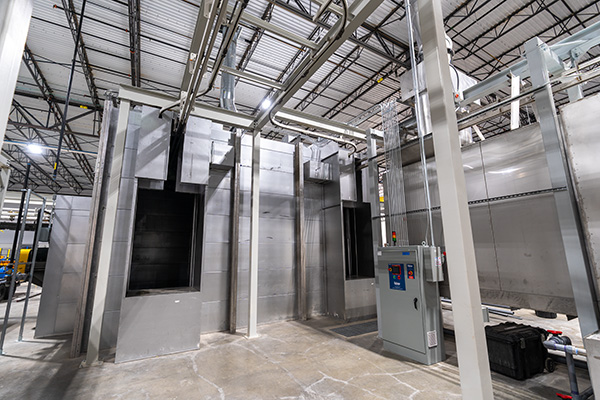

Dual-process powder booth with Wagner powder coat reciprocator
Curing oven
Cool down funnel
Power and free conveyor system
Reverse osmosis
Waste treatment system

This automated powder coating system is being used to finish panelized assemblies, processing one load bar every 4 minutes, running 12 hours per day, 7 days a week.

SPECIFICATIONS FOR OPEN FACE SPRAY BOOTHS

	Std.	Opt		Opt
20" x 20" Exhaust filter frames with wire grids	•		Energy efficient L.E.D. lighting	•
NESHAP compliant multi-stage filter system		•	Quite mixed flow high performance exhaust fan	•
Blanket media track		•	High static exhaust fan	•
Control Panel		•	Filtered product doors	•
Filter Life Optimizer "FLO"		•	Personnel exit door	•
Spark resistant tube axial fan with TEFC motor	•		Powder coat white finish	•
Class I Div. II sealed inside access light fixtures with color correct lamps	•		Conveyor portal openings with vestibules	•

APPLICATIONS FOR OPEN FACE SPRAY BOOTHS

Cabinet Shops

Open face booths are a preferred choice for many cabinet shops as they provide space for a wide variety of products sizes and configurations

Facility Maintenance

Many Facility maintenance shops find open face booths a necessary tool to keep their facility components in top condition.

General Industrial

Open face booths are the backbone of many industrial painting processes due to their low cost and flexibility.

MODEL	W	H	D	W	H	D	Light Fixtures	Exhaust Filters	Exhaust Fan Sized at 125FPM @ 1/4" S.P.
IBB-RWP-3-4-2	3'-0"	4'-0"	2'-0"	3'-4"	7'-2"	3'-8"	0	4	18" 1/2hp- 1,600cfm
IBB-RWP-5-4-3	5'-0"	4'-0"	3'-0"	5'-4"	7'-2"	5'-2"	1	6	18" 1/2hp- 2,500cfm
IBB-RWP-7.5-4-3.5	8'-0"	4'-0"	4'-0"	8'-4"	7'-2"	6'-2"	1	8	18" 3/4hp- 4,000cfm
IOF- 8-7-7	8'-0"	7'-0"	7'-0.5"	8'-4"	7'-6"	9'-8.5"	1	16	24" 1.5hp- 7,000cfm
IOF-8-8-7	8'-0"	8'-0"	7'-0.5"	8'-4"	8'-6"	9'-8.5"	2	16	24" 1.5hp- 8,000cfm
IOF-RWP-10-7-7	10'-0"	7'-0"	7'-0.5"	11'-0"	7'-6"	10'-2.5"	2	20	30" 1.5hp- 8,750cfm
IOF-RWP-10-10-7	10'-0"	10'-0"	7'-0.5"	11'-0"	10'-6"	10'-8.5"	2	25	36" 1.5hp- 12,500cfm
IOF-RWP-12-8-7	12'-0"	8'-0"	7'-0.5"	13'-0"	8'-6"	10'-8.5"	2	28	36" 1.5hp- 12,000cfm
IOF-RWP-12-10-7	12'-0"	10'-0"	7'-0.5"	13'-0"	10'-6"	10'-8.5"	3	35	36" 3hp- 15,000cfm
IOF-RWP-14-8-7	14'-0"	8'-0"	7'-0.5"	15'-0"	8'-6"	10'-8.5"	2	32	36" 2hp- 14,000cfm
IOF-RWP-14-10-7	14'-0"	10'-0"	7'-0.5"	15'-0"	10'-6"	10'-8.5"	3	40	36" 3hp- 17,500cfm
IOF-RWP-14-12-7	14'-0"	12'-0"	7'-0.5"	15'-0"	12'-6"	11'-2.5"	3	48	42" 5hp- 21,000cfm
IOF-RWP-16-8-7	16'-0"	8'-0"	7'-0.5"	17'-0"	8'-6"	10'-8.5"	3	36	36" 3hp- 16,000cfm
IOF-RWP-16-10-7	16'-0"	10'-0"	7'-0.5"	17'-0"	10'-6"	11'-2.5"	3	45	42" 5hp- 20,000cfm
IOF-RWP-16-12-7	16'-0"	12'-0"	7'-0.5"	17'-0"	12'-6"	11'-2.5"	4	54	42" 5hp- 24,000cfm
IOF-RWP-18-10-7	18'-0"	10'-0"	7'-0.5"	19'-4"	10'-8"	11'-2.5"	4	50	42" 5hp- 22,500cfm
IOF-RWP-18-12-7	18'-0"	12'-0"	7'-0.5"	19'-4"	10'-8"	11'-8.5"	4	60	48" 5hp- 27,000cfm
IOF-RWP-20-10-7	20'-0"	10'-0"	7'-0.5"	21'-4"	10'-8"	11'-2.5"	4	55	42" 7.5hp- 25,000cfm
IOF-RWP-20-12-7	20'-0"	12'-0"	7'-0.5"	21'-4"	12'-8"	11'-8.5"	5	66	48" 7.5hp- 30,000cfm

Preconfigured control packages reduce install cost and are simple to use on all our Open Paint Booths. Optional controls upgrades can be added to extend filter life and reduce energy consumption. AMCA certified fans with EPACT compliant TEFC motors are standard. Fans have remote bearing lubrication, aluminum spark resistant blades and heavy duty powder coated housings. Rohner Paint Spray Booths are designed to meet or exceed NFPA33 and IFC Chapter 24 requirements. Consult your local authority having jurisdiction for additional requirements before purchasing.

For more information on the standard features, Rohner Open Spray Booths for sale, use of open face industrial paint booths, a listing of models and dimensions, and available options of our Open Face Paint Spray Booths, please download the Open Face Spray Booths Brochure or contact Rohner and someone on our staff will help.
